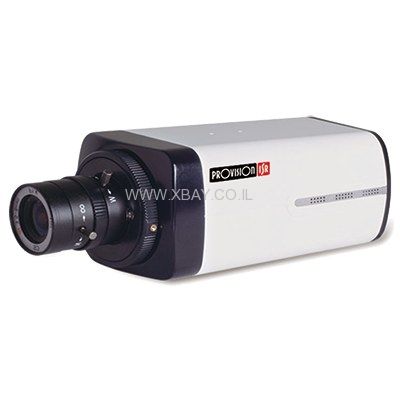

BX-390IP
- 1/3″ CMOS Sensor
- 2 Mega-Pixel
- True Day & Night (IR Cut Removable)
- 0.1 Lux Min. Illumination
- ONVIF
- Digital WDR
- 3D Noise Reduction
- BLC/HLC
- Motion Detection and Privacy Masking
- CS Lens Mount
- PoE Support
- Local Storage
- RS-485
- I/O – 1 Alarm in / 1 Alarm Out
- 2 Way Audio
Model |
BX-390IP |
||
C a m e r a |
Video |
Image Sensor |
Sony IMX122 1/3″ CMOS |
Effective Pixels |
1920×1080 |
||
Electronic Shutter |
1/25s ~ 1/100000s |
||
Day & Night |
ICR |
||
Min. Illumination |
0.1 lux |
||
Audio |
Audio compression |
G711A/U |
|
Communication |
Two Way Audio |
||
Image Enhancement |
Image Settings |
AWB, AES, AGC Adjustable |
|
WDR Range |
Digital WDR |
||
Noise Reduction |
3D-DNR |
||
Image Orientation |
Mirror/Flip/Vertical Mode |
||
Privacy Zone |
Yes |
||
Motion Detection |
Yes |
||
Compression |
Video Compression |
H.264 |
|
Resolution |
1080P (1920×1080)*, 720P (1280×720), VGA, QVGA |
||
Multi-stream |
1920×1080 (1~30fps)* / 1280×960 (1~30fps) / 1280×720 (1~30fps) / 1280×720 (1~30fps) / 640×480 (1~30fps) / 320×240 (1~30fps) |
||
Bit rate |
64Kbps ~ 8Mbps |
||
Encode Mode |
VBR/CBR |
||
Image Quality |
Five levels under VBR; Free adjustment under CBR |
||
Housing |
IR Distance |
No |
|
Lens |
N/A |
||
Iris |
N/A |
||
Lens Mount |
CS Mount |
||
Water-proof |
No |
||
Bracket |
No |
||
Dimensions |
70W x 145D x 60H mm |
||
Weight(gross) |
395g |
||
Connectivity |
Network |
RJ45 (+PoE) |
|
Power |
DC Socket |
||
Analog Video Output |
CVBS (BNCx1) |
||
Audio |
1Ch Input, 1Ch Output |
||
SD Card |
Support TF (64GB Max) |
||
RS485 |
Yes |
||
Alarm |
1Ch Input, 1Ch Output |
||
Network |
Remote Monitoring |
IE Browsing, CMS 2.0 Control Software |
|
User Access |
Supports simultaneous monitoring for up to 4 users with |
||
Network Protocol |
TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP |
||
ONVIF |
Yes |
||
Ethernet |
100Mbps |
||
PoE |
Yes |
||
Others |
Power Supply |
DC12V/PoE, 320mA (Max) |
|
Work Environment |
-10°C~50°C, 10%~90% Humidity |
