מצלמת IP מסוג צינור אינפרא 30 נורות למרחק 30 מטר , מוגנת מים (IP66) ברזולוציית 3MP עדשה קבועה 4 מ”מ, תומך פרוטוקול ONVIF , פתרון לתנאי תאורה של אור וצל (D-WDR ), ניקוי רעשים דיגיטלי (3D-DNR),פיצוי אור אחורי (BLC),תומך הקלטה לפי תנועה , ניתן להעביר חשמל ע”ג רשת(POE) , כולל כניסת RS-485 , כולל מגעים יבשים ,אודיו דו כיווני.

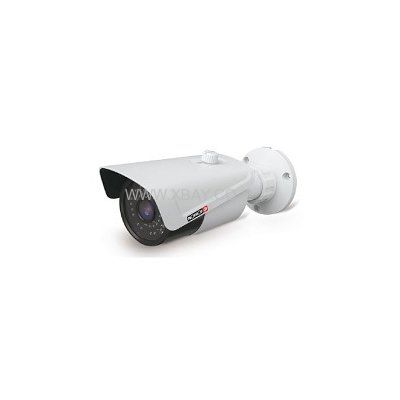

30M IR FIXED LENS BULLET CAMERA
I3-310IP04
- 1/3” CMOS Sensor
- 3 Mega-Pixel
- True Day & Night (IR Cut Removable)
- 0 Lux (IR On) Min. Illumination
- ONVI
- Digital WDR
- 3D Noise Reduction
- Motion Detection and Privacy Masking
- 3.6mm Mega-Pixel Lens
- 30m IR Illumination
- PoE Support
- 1 Way Audio
- IP 66 Protection
|
Model |
I3-310IP04 |
||
|
C a m e r a |
Video |
Image Sensor |
1/3″ CMOS |
|
Effective Pixels |
2048×1536 |
||
|
Electronic Shutter |
1/25s ~ 1/100000s |
||
|
Day & Night |
ICR |
||
|
Min. Illumination |
0 Lux (IR ON) |
||
|
Audio |
Audio compression |
G.711A/G.711U |
|
|
Communication |
One-way Audio |
||
|
Image Enhancement |
Image Settings |
AWB, AES, AGC Adjustable |
|
|
WDR Range |
Digital WDR |
||
|
Noise Reduction |
3D-DNR |
||
|
Image Orientation |
Mirror/Flip |
||
|
Privacy Zone |
Yes |
||
|
Motion Detection |
Yes |
||
|
Compression |
Video Compression |
H.264 |
|
|
Resolution |
3MP(2048×1536),1080P(1920×1080),720P(1280×720),D1,CIF,480×240 |
||
|
Multi-stream |
3MP(1~30fps) / 1920×1080(1~30fps) / 1280×720(1~30fps) |
||
|
Bit rate |
64Kbps ~ 8Mbps |
||
|
Encode Mode |
VBR/CBR |
||
|
Image Quality |
Five levels under VBR; Free adjustment under CBR |
||
|
Housing |
IR Distance |
30m |
|
|
Lens |
3.6mm |
||
|
Iris |
Fixed Iris |
||
|
Lens Mount |
?12 mount |
||
|
Water-proof |
IP66 |
||
|
Bracket |
3-Axis Wall Bracket |
||
|
Dimensions |
?87mm×219mm |
||
|
Weight(gross) |
621g |
||
|
Connectivity |
Network |
RJ45 (+PoE) |
|
|
Power |
DC Socket |
||
|
Analog Video Output |
NO |
||
|
Mic Connectivity |
I Ch Input |
||
|
SD Card |
No |
||
|
RS485 |
No |
||
|
Alarm |
No |
||
|
Network |
Remote Monitoring |
IE Browsing, CMS 2.0 Control Software |
|
|
User Access |
Supports simultaneous monitoring for up to 4 users with |
||
|
Network Protocol |
TCP/IP, UDP, DHCP, NTP, PPPoE, DDNS, SMTP, FTP |
||
|
ONVIF |
Yes |
||
|
Ethernet |
100Mbps |
||
|
PoE |
Yes |
||
|
Others |
Power Supply |
DC12V/PoE |
|
|
Work Environment |
-10°C~50°C, 10%~90% Humidity |
||
